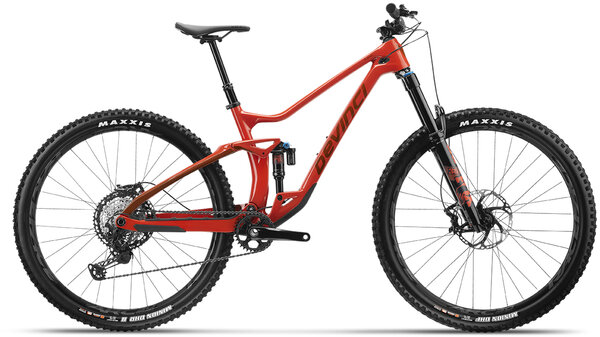

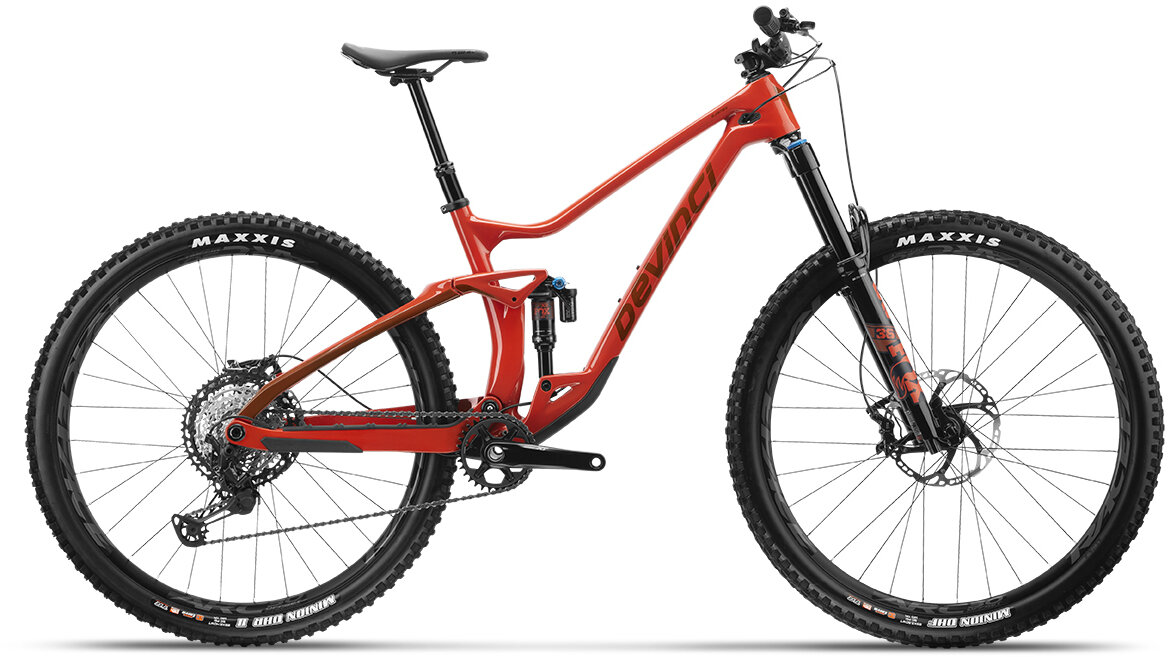

Devinci Django Carbon XT 12s LTD

Devinci Django Carbon XT 12s LTD
  • Color: White Mist
  • Color: Orange Phoenix
This item is currently not available.


The light and lively Split-Pivot Django brings unstoppable stoke to a tangle of trail types. This capable short-travel machine shines on climbs while bringing adept handling to gnarled, technical turf. Superboost 157 rear spacing combined with 29x2.6" tire clearance accentuates its punchy, aggressive powers on rolling terrain. A relocated adjustable-geo flip chips mean fewer moving parts and simple on-the-fly adjustability. Plus, a threaded BB makes for easy maintenance, while the molded chainstay and downtube protection help buck rocks and loose debris. Jump on the fun-hogging Django 29 today and find your happy place—everywhere you ride.


Frame Carbon DMC-G 120mm
Fork Fox Float 36 Performance Elite Grip2 150 | 44 Offset
Rear Shock Fox Float DPX2 Performance Elite | 190x45
Rims RaceFace ARC30 | 30mm inner | TR
Hubs Front: RaceFace Vault | 6bolts | TA 15x110mm
Rear: RaceFace Vault | 6bolts | TA 12x157mm | Microspline
Spokes Sapim Stainless 14G w/Nylok
Tires Front: Maxxis Minion DHF | 29 x 2.5" WT | 3C MaxxTerra Exo+ TR
Rear: Maxxis Minion DHRII | 29 x 2.4" WT | 3C MaxxTerra Exo+ TR
Bottom Bracket Shimano MT800 | BSA | 68/73mm
Crankset Shimano XT M8130-1 | 32T | SuperBoost 157
Shifters Shimano XT M8100 | 12s | I-spec EV
Rear Derailleur Shimano XT M8100 | 12s
Cassette/Freewheel Shimano M8100 | 12s | 10-51T | Microspline
Chain Shimano M7100 | 12s
Brakes Shimano XT M8120/M8100 | 4 Pistons
Rotors Shimano RT76 | 203mm
Handlebars RaceFace Next R35 | B:35mm | R:20mm | W:800mm
Tape/Grips Devinci Performance | w/lock-on
Stem RaceFace Turbine R35 | B:35mm | L:50mm | 0°
Headset FSA Orbit | 1.5 | Zero Stack
Seatpost Fox Transfer Performance Elite | 31.6mm
Saddle SDG BELAIR 3.0
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN
White Mist / X-Small 883385203064 FV21014132
White Mist / Small 883385203101 FV21014232
White Mist / Medium 883385203125 FV21014332
White Mist / Large 883385203149 FV21014432
White Mist / X-Large 883385203187 FV21014532
Orange Phoenix / X-Small 883385203057 FV21014131
Orange Phoenix / Small 883385203095 FV21014231
Orange Phoenix / Medium 883385197516 FV21014331
Orange Phoenix / Large 883385203132 FV21014431
Orange Phoenix / X-Large 883385203170 FV21014531
